ST-1200 Line Size 7 Retainers - Aluminum Full Grommets

The information on the ST-1200 Size 7 products are provided for existing applications. For new applications, please use the Size 65 products.

1271 Full Grommet
Oval Head Stud Full Grommet Picture

Click here for the Engineering Drawing
1271-7 Revision A

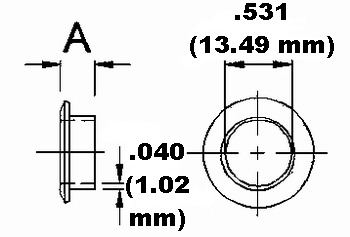

Oval Head Stud Full Grommet Dimension Drawing
1276 Full Grommet
Flush Head Stud Full Grommet

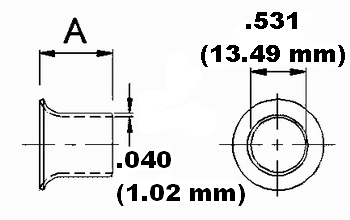

Flush Head Stud Full Grommet Dimension Drawing
For use with all ST-1200 Line studs excepting flush heads. For use with Flush Head ST-1200 Line Studs.
Part number: 1271-7(Dimension "A" For example 1271-7375 (where dimension "A" = .375) Part number: 1276-7(Dimension "A" For example 1276-7250 (where dimension "A" = .250)
Material: Aluminum Material: Aluminum

Available in lengths to fit most common panel gages.

Panel Thickness 1271 Full Grommet 1276 Full Grommet
(inch) (mm)
.050 - .095 1.27 - 2.41 1271-7375 1276-7250
.096 - .156 2.44 - 3.96 1271-7475 1276-7325
.157 - .218 .3.99 - 5.54 --- 1276-7400
