ST-1200 Line Size 6 Retainers - Aluminum Full Grommets

The information on the ST-1200 Size 6 products are provided for existing applications. For new applications, please use the Size 65 products.

1271 Full Grommet
Oval Head Stud Full Grommet Picture

Click here for the Engineering Drawing
1271-6 Revision C

Oval Head Stud Full Grommet Dimension Drawing

1276 Full Grommet

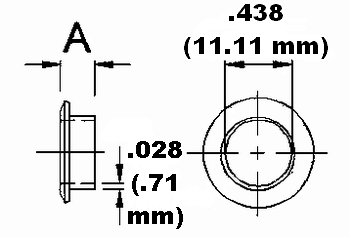

Flush Head Stud Full Grommet Picture Flush Head Stud Full Grommet Dimension Drawing

For use with all ST-1200 Line studs excepting flush heads. For use with Flush Head ST-1200 Line Studs.
Part number: 1271-6(Dimension "A" For example 1271-6375 (where dimension "A" = .375) Part number: 1276-6(Dimension "A" For example 1276-6250 (where dimension "A" = .250)
Material: Aluminum Material: Aluminum

Available in lengths to fit most common panel gages.

Panel Thickness

1271 Full Grommet

1276 Full Grommet

(inch) (mm)
.040 - .065 1.02 - 1.65 1271-6350 1276-6218
.066 - .100 1.68 - 2.54 1271-6375 1276-6250
.101 - .135 2.57 - 3.43 1271-6425 1276-6300
