ST-1200 Line Size 65 Retainers - Aluminum Full Grommets

1271 Full Grommet
Oval Head Stud Full Grommet Picture

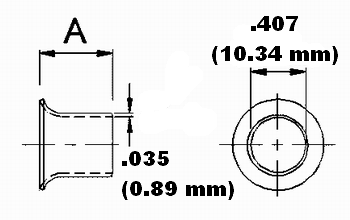

Oval Head Stud Full Grommet Dimension Drawing
Click here for the Engineering Drawing

1276 Full Grommet
Flush Head Stud Full Grommet Picture

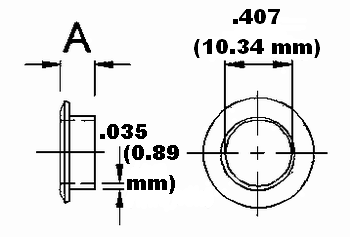

Flush Head Stud Full Grommet Dimension Drawing
For use with all ST-1200 Line studs excepting flush heads. For use with Flush Head ST-1200 Line Studs.
Part number: 1271-65(Dimension "A" For example 1271-65375 (where dimension "A" = .375) Part number: 1276-65(Dimension "A" For example 1276-65250 (where dimension "A" = .250)
Material: Aluminum Material: Aluminum

Available in lengths to fit most common panel gages.

Panel Thickness

1271 Full Grommet

1276 Full Grommet

(inch) (mm)

.050 - .095

 1.27 - 2.41

1271-65375

1276-65250

.096 - .156

 2.44 - 3.96

1271-65475

1276-65325

.157 - .218

 .3.99 - 5.54

1271-65525

1276-65400
