ST-1200 Line Size 5 Full Grommet Retainers - DZUS ® is not affiliated with DFCI ®

ST-1200 Line Size 5 Retainers - Aluminum Full Grommet

1271 Full Grommet

1276 Full Grommet

Oval Head Stud Full Grommet Picture
Click here for the Engineering Drawing

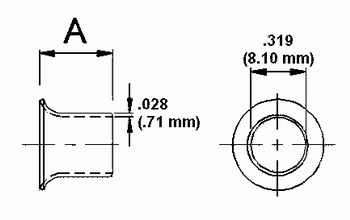

Oval Head Stud Full Grommet Dimension Drawing

Flush Head Stud Full Grommet Picture
Click here for the Engineering Drawing

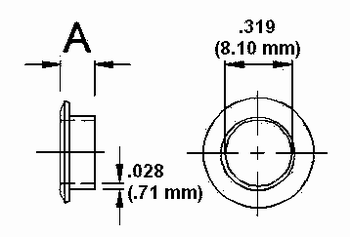

Flush Head Stud Full Grommet Dimension Drawing

For use with all ST-1200 Line studs excepting flush heads.

For use with Flush Head ST-1200 Line Studs.

Part number:

1271-5Dimension "A"
For example 1271-5175 (where dimension "A" = .175)

Part number:

1276-5Dimension "A"
For example 1276-5175 (where dimension "A" = .175)

Material:

Aluminum

Material:

Aluminum

Available in lengths to fit most common panel gages.

Panel "P" Thickness		1271 Full Grommet	1276 Full Grommet
(inch)	(mm)	1271 Full Grommet	1276 Full Grommet
.031 - .062	.79 - 1.57	1271-5312	1276-5175
.063 - .094	1.60-2.39	1271-5350	1276-5225
.095 - .125	2.41-3.18	1271-5375	1276-5250
