Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!


ST-1200 Line Size 5 Receptacles - S-Spring

S-Spring Receptacle Picture

Click here for the Engineering Drawing
1219-A5 Revision C

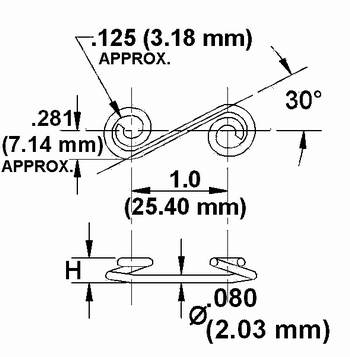

 S-Spring Receptacle Dimension Drawing

Material: music wire

Finish: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Optional Stainless Steel: Stainless steel, 17-7 PH on special order. Change the finish suffix from "-Z3CT" to "-SS".

Weight: .0059 lb (2.68 g)

Recommended Deflection: .024 to .057 in. (.61 to 1.45 mm)

Part Number "H" Dimension
inch
± .010		 mm
± .25
1219-A5200-Z3CT .200 .5.08
1219-A5225-Z3CT .225 5.72
1219-A5250-Z3CT .250 6.35
1219-A5275-Z3CT .275 6.99
Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-550-Z3CT", the Stud Grip is "50".
Stud Grip 1219-A5275-Z3CT 1219-A5250-Z3CT 1219-A5225-Z3CT 1219-A5200-Z3CT
inch mm inch mm inch mm inch mm
30 .055-.079 1.40-2.01 .080-.104 2.03-2.64 .105-.129 2.67-3.28 .130-.154 3.30-3.91
40 .155-.179 3.94-4.55 .180-.204 4.57-5.18 .205-.229 5.21-5.82 .230-.254 5.84-6.45
50 .255-.279 6.48-7.09 .280-.304 7.11-7.72 .305-.329 7.75-8.36 .330-.354 8.38-8.99
60 .355-.379 9.02-9.63 .380-.404 9.65-10.26 .405-.429 10.29-10.90 .430-.454 10.92-11.53
70 .455-.479 11.56-12.17 .480-.504 12.19-12.80 .505-.529 12.83-13.44 .530-.554 13.46-14.07
80 .555-.579 14.10-14.71 .580-.604 14.73-15.34 .605-.629 15.37-15.98 .630-.654 16.00-16.61
90 .655-.679 16.64-17.25 .680-.704 17.27-17.88 .705-.729 17.91-18.52 .730-.754 18.54-19.15
100 .755-.778 19.18-19.78 .780-.804 18.91-20.42 .805-.829 20.45-21.06 .830-.854 21.08-21.69
110 .855-.879 21.72-22.33 .880-.904 22.035-22.96 .905-.929 22.99-23.60 .930-.954 23.62-24.23
120 .955-.979 24.26-24.87 .980-1.004 24.89-25.05 1.005-1.029 25.53-26.14 1.030-1.054 26.16-26.77

Note: When our existing supply of Cadmium plated parts is exhausted, DFCI Solutions, Inc will no longer offer Cadmium plating as an option.

In place of the Cadmium plating, we recommend:

Clear: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Black: Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT

Yellow: Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT

The colored finishes offer no advantage over the clear other than the color, and they are more expensive.
