ST-1200 Line Size 3 Receptacles - S-Spring

S-Spring Receptacle Picture

Click here for the Engineering Drawing
1219-3 Revision F

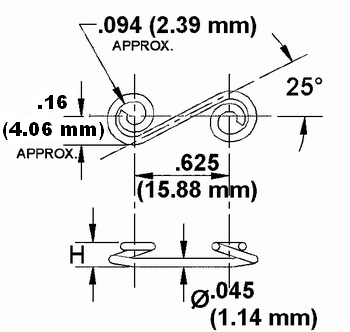

 S-Spring Receptacle Dimension Drawing
Size 3 S Spring

Material: Music wire

Finish:Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Optional Stainless Steel: Stainless steel, 300 series on special order. Change the suffix from -Z3CT to -SS.

Optional Finishes: Change the suffix on the basic part number from Z3CT to the desired finish. See the finishes table.

Part Number "H" Dimension
inch)
± .010		 mm)
± .25
1219-3150-Z3CT .150 3.81
1219-3175-Z3CT .175 4.45
1219-3200-Z3CT .200 5.08
1219-3225-Z3CT .225 5.72

Weight: .0009 lb (0.41 g)

Recommended Deflection: .020" to .045" (.51 to 1.14 mm)

Calculating Stud Length
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Total Pileup Drawing
  1. First calculate the total pileup. Add Panel thickness + Support thickness + Gap thickness.
    NOTE: The gap is the distance between the panel and the support, and it may be the result of panel and support shape, use of a grommet or other stud retainer, or by use of a spacer. The Gap Thickness dimension will equal zero when the panel surface is flush to the support surface. For example, Gap = 0 when the underside of the panel is counter bored to accept the thickness of the stud retainer.
  2. Using the calculated total pileup for the chosen receptacle, locate your total pileup in one of the ranges in the table below and find the Stud Grip size to the left. The Stud Grip is added to the end of the stud part number. For example: in the stud part number "121J-350-Z3CT", the Stud Grip is "50".
RECEPTACLES
TOTAL PILEUP = Panel + Support + Gap
Stud Grip Callout 1219-3150-Z3Y 1219-3175-Z3Y 1219-3200-Z3Y 1219-3225-Z3Y
inch mm inch mm inch mm inch mm
25 --- --- --- --- .070-.094 1.78-2.39 .045-.069 1.14-1.75
30 .170-.194 4.32-4.93 .145-.169 3.68-4.29 .120-.144 3.05-3.66 .095-.119 2.41-3.02
35 .220-.244 5.59-6.20 .195-.219 4.95-5.56 --- --- --- ---
40 .270-.294 6.86-7.47 .245-.269 6.22-6.83 --- --- --- ---
45 .320-.344 8.13-8.74 .295-.319 7.49-8.10 --- --- --- ---
50 .370-.394 9.40-10.01 .345-.369 8.76-9.37 --- --- --- ---
55 .420-.444 10.67-11.28 .395-.419 10.03-10.64 --- --- --- ---
60 .470-.494 1.94-12.55 .445-.469 11.30-11.91 --- --- --- ---
65 .520-.544 13.21-13.82 .495-.519 12.57-13.18 --- --- --- ---
70 .570-.594 14.48-15.09 .545-.569 13.84-14.45 --- --- --- ---
75 .620-.644 15.75-16.36 .595-.619 15.11-15.72 --- --- --- ---
80 .670-.694 17.02-17.63 .645-.669 16.38-16.99 --- --- --- ---

Note: When our existing supply of Cadmium plated parts is exhausted, DFCI Solutions, Inc will no longer offer Cadmium plating as an option.

In place of the Cadmium plating, we recommend:

Clear: Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

Black: Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT

Yellow: Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT

The colored finishes offer no advantage over the clear other than the color, and they are more expensive.
