To order, add up the thickness of the panels being joined together, as shown here. Next, locate the total thickness on the chart.

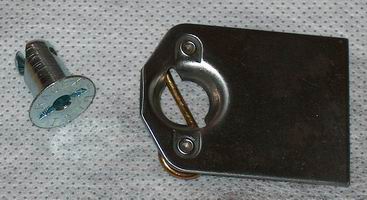

4639-65 or 4639-665 Flush Head Fastener or
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Total Material Thickness | Stud Grip | Spring Height |
|
|
|
|
|
4639-65 Flush Head Part Number |
4639-665 Flush Head Part Number |
RACEX® Flush Head Part Number |
Weld Plate Part Number | |||
| .060"-.097" | .400" | .360" | 4639-65-400 | 4639-665-400 | RACEX-F6540-Z3CT | 4639-24945-360 |
| .089"-.122" | .400" | .335" | 4639-65-400 | 4639-665-400 | RACEX-F6540-Z3CT | 4639-24945-335 |
| .114"-.147" | .400" | .310" | 4639-65-400 | 4639-665-400 | RACEX-F6540-Z3CT | 4639-24945-310 |
| .139"-.172" | .400" | .285" | 4639-65-400 | 4639-665-400 | RACEX-F6540-Z3CT | 4639-24945-285 |
| .164"-.197" | .500" | .360" | 4639-65-500 | 4639-665-500 | RACEX-F6550-Z3CT | 4639-24945-360 |
| .189"-.222" | .500" | .335" | 4639-65-500 | 4639-665-500 | RACEX-F6550-Z3CT | 4639-24945-335 |
| .214"-.247" | .550" | .360" | 4639-65-550 | 4639-665-550 | RACEX-F6555-Z3CT | 4639-24945-360 |
| .239"-.272" | .550" | .335" | 4639-65-550 | 4639-665-550 | RACEX-F6555-Z3CT | 4639-24945-335 |
| .264"-.297" | .550" | .310" | 4639-65-550 | 4639-665-550 | RACEX-F6555-Z3CT | 4639-24945-310 |
