PX-1600 Size 6 mm Studs

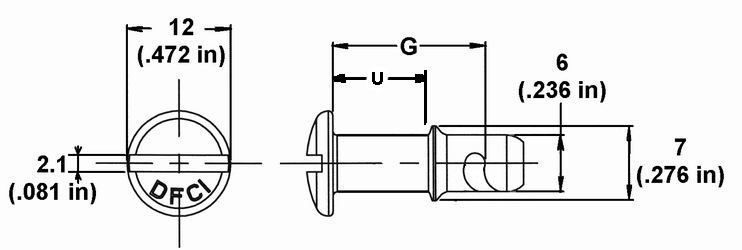

Slotted

Click here for the Engineering Drawing
1631-61 Revision D
Part Number Finish
1631-61G-Z3CT (Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
1631-61G-Z3YT Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT
1631-61G-Z3BT Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT
1631-61G-ZFBT Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt; KL100
Suffix: -ZFBT
Stud Grip Callout
"G" 		Grip Length
(G)		 Undercut
(U)
(mm) (inch) (mm) (inch)
9 9 .354 4 .16
10 10 .394 5 .20
11 11 .433 6 .24
12 12 .472 7 .28
13 13 .512 8 .32
14 14 .551 9 .35
15 15 .590 10 .39
16 16 .630 11 .43
17 17 .669 12 .47
18 18 .709 13 .51
19 19 .748 14 .55
20 20 .787 15 .59
21 21 .827 16 .63
22 22 .866 17 .67
23 23 .906 18 .71
24 24 .945 19 .75
25 25 .984 20 .79
26 26 1.024 21 .83
27 27 1.063 22 .87
28 28 1.102 23 .91
29 29 1.141 24 .95
30 30 1.181 25 .98
31 31 1.220 26 1.02
32 32 1.260 27 1.06
--- --- --- --- ---
38 38 1.496 33 1.30

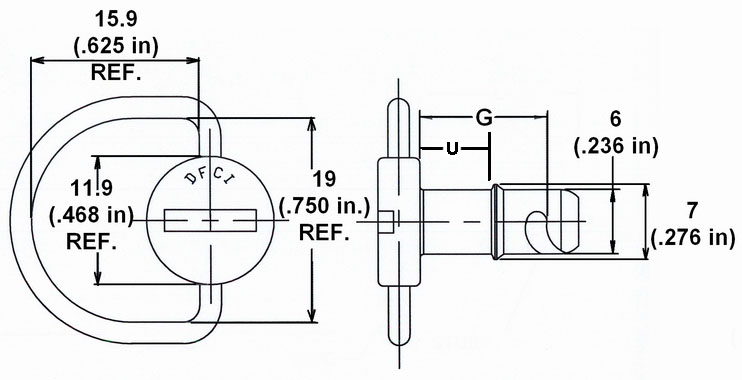

Ring

Click here for the Engineering Drawing
1631-64M Revision A
Part Number Finish
1631-64G-Z3CT (Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
1631-64G-Z3YT Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT
1631-64G-Z3BT Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT
1631-64G-ZFBT Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt; KL100
Suffix: -ZFBT
Stud Grip Callout
"G" 		Grip Length
(G) 		Undercut
(U) 		Weight
(mm) (inch) (mm) (inch) (gm) (lb)
9 9 .354 4 .16 7.439 .0164
10 10 .394 5 .20 7.666 .0169
11 11 .433 6 .24 7.892 .0174
12 12 .472 7 .28 8.119 .0179
13 13 .512 8 .32 8.346 .0184
14 14 .551 9 .35 8.573 .0189
15 15 .590 10 .39 8.800 .0194
16 16 .630 11 .43 9.027 .0199
17 17 .669 12 .47 9.253 .0204
18 18 .709 13 .51 9.434 .0208
19 19 .748 14 .55 9.661 .0213
20 20 .787 15 .59 9.888 .0219
21 21 .827 16 .63 10.115 .0223
22 22 .866 17 .67 10.341 .0228
23 23 .906 18 .71 10.569 .0233
24 24 .945 19 .75 10.795 .0238
25 25 .984 20 .79 11.022 .0243
26 26 1.024 21 .83 11.249 .0248
27 27 1.063 22 .87 11.430 .0252
28 28 1.102 23 .91 11.657 .0257
29 29 1.141 24 .95 11.884 .0262
30 30 1.181 25 .98 12.111 .0267
31 31 1.220 26 1.02 12.338 .0272
32 32 1.260 27 1.06 12.564 .0277
--- --- --- --- --- --- ---
38 38 1.496 33 1.30 13.880 .0306

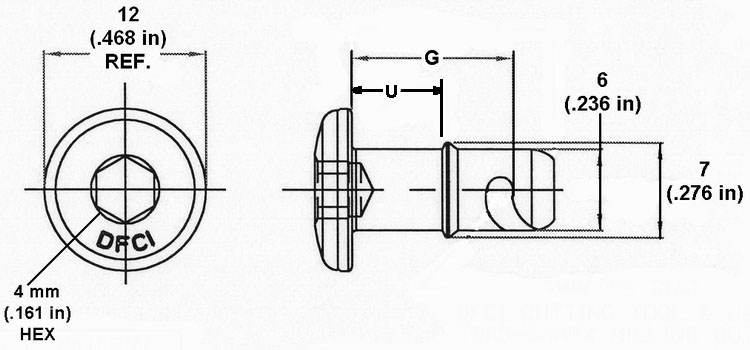

Hex Recess


Click here for the Engineering Drawing
1631-62 Revision C
Part Number Finish
1631-62G-Z3CT (Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
1631-62G-Z3YT Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer

We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT
1631-62G-Z3BT Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT
1631-62G-ZFBT Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt; KL100
Suffix: -ZFBT

The "G" in the part number represents the Stud Grip Length. The Stud Grip Length can be determined from the sizing table found on the receptacle pages.

Stud Grip Callout
"G" 		Grip Length
(G)		 Undercut
(U)		 Weight
(mm) (inch) (mm) (inch) (gm) (lb)
9 9 .354 4 .16 5.262 .0116
10 10 .394 5 .20 5.488 .0121
11 11 .433 6 .24 5.715 .0126
12 12 .472 7 .28 5.942 .0131
13 13 .512 8 .32 6.169 .0136
14 14 .551 9 .35 6.350 .0140
15 15 .590 10 .39 6.577 .0145
16 16 .630 11 .43 6.804 .0150
17 17 .669 12 .47 7.031 .0155
18 18 .709 13 .51 7.257 .0160
19 19 .748 14 .55 7.484 .0165
20 20 .787 15 .59 7.711 .0170
21 21 .827 16 .63 7.938 .0175
22 22 .866 17 .67 8.119 .0179
23 23 .906 18 .71 8.346 .0184
24 24 .945 19 .75 8.573 .0189
25 25 .984 20 .79 8.800 .0194
26 26 1.024 21 .83 9.026 .0199
27 27 1.063 22 .87 9.253 .0204
28 28 1.102 23 .91 9.480 .0209
29 29 1.141 24 .95 9.707 .0214
30 30 1.181 25 .98 9.888 .0218
31 31 1.220 26 1.02 10.115 .0223
32 32 1.260 27 1.06 10.342 .0228
--- --- --- --- --- --- ---
38 38 1.496 33 1.30 11.703 .0258
