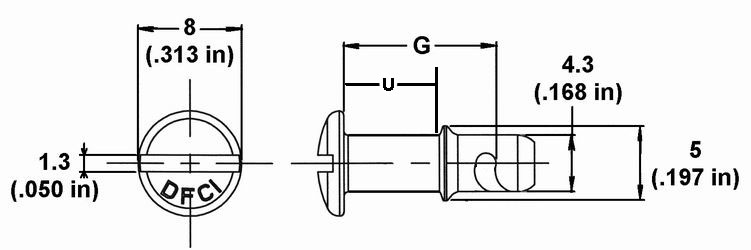

PX-1600 Size 4mm Studs
Slotted
| Part Number |
Finish |
| 1631-41G-Z3CT |
(Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT |
| 1631-41G-Z3YT |
Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer
We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT |
| 1631-41G-Z3BT |
Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT |
| 1631-41G-ZFBT |
Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt;
KL100
Suffix: -ZFBT |
Stud Grip Callout
"G"
|
Grip Length
(G)
|
Undercut
(U)
|
| (mm) |
(inch) |
(mm) |
(inch) |
| 8 |
8 |
.315 |
3 |
.12 |
| 9 |
9 |
.354 |
4 |
.16 |
| 10 |
10 |
.394 |
5 |
.20 |
| --- |
--- |
--- |
--- |
--- |
| 13 |
13 |
.512 |
8 |
.32 |
| --- |
--- |
--- |
--- |
--- |
| 15 |
15 |
.590 |
10 |
.39 |
| 16 |
16 |
.630 |
11 |
.43 |
| --- |
--- |
--- |
--- |
--- |
| 19 |
19 |
.748 |
14 |
.55 |
| --- |
--- |
--- |
--- |
--- |
| 21 |
21 |
.827 |
16 |
.63 |

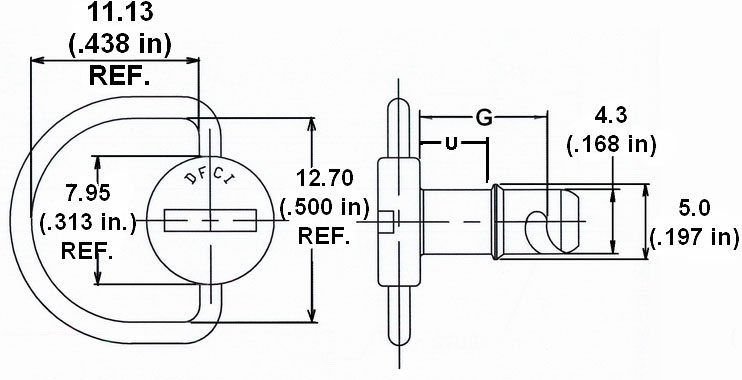

Ring
| Part Number
| Finish |
| 1631-44G-Z3CT |
(Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT |
| 1631-44G-Z3YT |
Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer
We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT |
| 1631-44G-Z3BT |
Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT |
| 1631-44G-ZFBT |
Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt;
KL100
Suffix: -ZFBT |

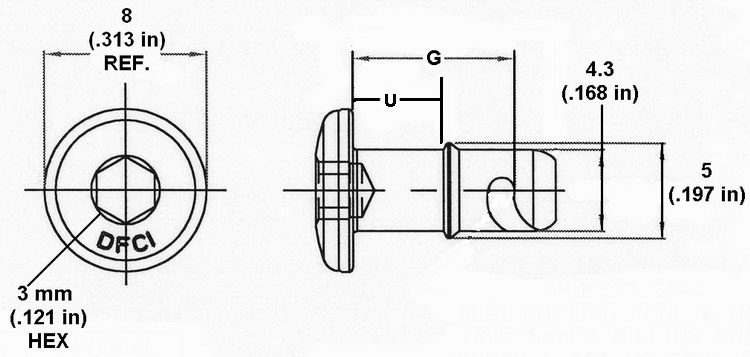

Hex Recess
| Part Number |
Finish |
| 1631-42G-Z3CT |
(Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT |
| 1631-42G-Z3YT |
Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer
We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT |
| 1631-42G-Z3BT |
Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT |
| 1631-42G-ZFBT |
Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt;
KL100
Suffix: -ZFBT |
The "G" in the part number represents the Stud
Grip Length. The Stud Grip Length can be determined from the sizing
table found on the receptacle pages.
Stud Grip Callout
"G"
|
Grip Length
(G)
|
Undercut
(U)
|
Weight
|
| (mm) |
(inch) |
(mm) |
(inch) |
(gm) |
(lb) |
| 8 |
8 |
.315 |
3 |
.12 |
1.950 |
.0043 |
| 9 |
9 |
.354 |
4 |
.16 |
2.086 |
.0046 |
| 10 |
10 |
.394 |
5 |
.20 |
2.177 |
.0048 |
| 11 |
11 |
.433 |
6 |
.24 |
2.268 |
.0050 |
| 12 |
12 |
.472 |
7 |
.28 |
2.404 |
.0053 |
| 13 |
13 |
.512 |
8 |
.32 |
2.495 |
.0055 |
| 14 |
14 |
.551 |
9 |
.35 |
2.585 |
.0057 |
| 15 |
15 |
.590 |
10 |
.39 |
2.721 |
.0060 |
| 16 |
16 |
.630 |
11 |
.43 |
2.812 |
.0062 |
| 17 |
17 |
.669 |
12 |
.47 |
2.948 |
.0065 |
| 18 |
18 |
.709 |
13 |
.51 |
3.039 |
.0067 |
| 19 |
19 |
.748 |
14 |
.55 |
3.130 |
.0069 |
| 20 |
20 |
.787 |
15 |
.59 |
3.220 |
.0071 |
| 21 |
21 |
.827 |
16 |
.63 |
3.357 |
.0074 |
|
