PX-1600 Size 4 mm Bracket Receptacle
| Part Number |
Finish |
| 1633-4310-Z3CT |
(Standard Finish)
Zinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT |
| 1633-4310-Z3YT |
Zinc Trivalent Yellow .0003 thick, Trivalent Chromate Yellow Dye with Sealer
We recommend the Z3CT finish instead of the Z3YT finish. The Z3CT finish is much more cost effective and provides the same salt spray benefits as the Z3YT finish. (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Yellow
Suffix: -Z3YT |
| 1633-4310-Z3BT |
Zinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT |
| 1633-4310-ZFBT |
Zinc Flake Coating with Black Sealer
Delta Seal Black GZ Coating (RoHS Compliant)
Specification(s): Delta Protekt;
KL100
Suffix: -ZFBT |

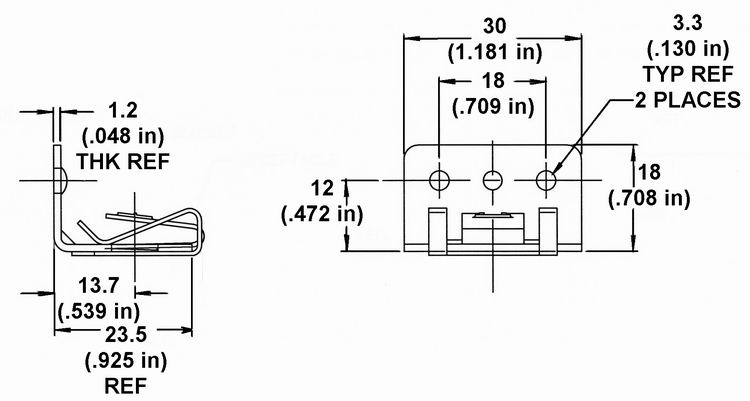

Material: Spring Steel
Mechaincal:
Maximum Load without Distortion: 30 lb.
Maximum Torque: 23 in.-lb.
The Right Angle bracket can be welded or riveted to the support
structure.
|

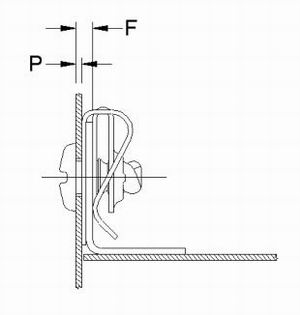

| F = P + 1.9 mm (.075 in) |
Calculate F Dimension
Using the table below, find the F Dimension range that applies to
your calculated F range. The "G" for the Stud Part
Number is stated to the right of the applicable F Dimension range.
| F Dimension |
"G" |
| mm |
in |
| 1.5-2.4 |
.059-.094 |
08 |
| 2.5-3.4 |
.098-.134 |
09 |
| 3.5-4.4 |
.138-.173 |
10 |
| 4.5-5.4 |
.177-.213 |
11 |
| 5.5-6.4 |
.217-.252 |
12 |
| 6.5-7.4 |
.256-.291 |
13 |
| 7.5-8.4 |
.295-.331 |
14 |
| 8.5-9.4 |
.335-.370 |
15 |
| 9.5-10.4 |
.374-.409 |
16 |
| 10.5-11.4 |
.413-.449 |
17 |
| 11.5-12.4 |
.453-.488 |
18 |
| 12.5-13.4 |
.492-.528 |
19 |
| 13.5-14.4 |
.531-.537 |
20 |
| 14.5-15.4 |
.571-.606 |
21 |
| 15.5-16.4 |
.610-.646 |
22 |
| 16.5-17.4 |
.650-.685 |
23 |
|
| F Dimension |
"G" |
| mm |
in |
| 17.5-18.4 |
.689-.724 |
24 |
| 18.5-19.4 |
.728-.764 |
25 |
| 19.5-20.4 |
.768-.803 |
26 |
| 20.5-21.4 |
.807-.843 |
27 |
| 21.5-22.4 |
.846-.882 |
28 |
| 22.5-23.4 |
.886-.921 |
29 |
| 23.5-24.4 |
.925-.961 |
30 |
| 24.5-25.4 |
.965-1.000 |
31 |
| 25.5-26.4 |
1.004-1.039 |
32 |
| 26.5-27.4 |
1.043-1.079 |
33 |
| 27.5-28.4 |
1.083-1.118 |
34 |
| 28.5-29.4 |
1.122-1.157 |
35 |
| 29.5-30.4 |
1.161-1.197 |
36 |
| 30.5-31.4 |
1.201-1.236 |
37 |
| 31.5-32.4 |
1.240-1.276 |
38 |
|
|
