When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!


3506-SC Stud Reference

The information on this page is provided for reference only. DFCI Solutions recommends purchasing completed assemblies. (3506-SC).

3506-SC Stud Picture

Click here for the Engineering Drawing
3506 Revision F

Click here for the Engineering Drawing
3506 Revision D

Click here for the Engineering Drawing
3506 Revision E

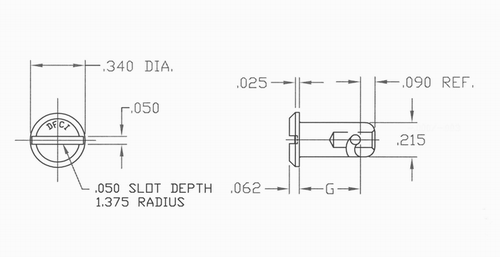

3506-SC Stud Dimension Drawing
Part Number Stud Grip Length "G"
Plated Stainless Steel inch mm
3506-28-Z3CT 3506-28-SS .280 7.11
3506-29-Z3CT 3506-29-SS .290 7.37
3506-30-Z3CT 3506-30-SS .300 7.62
3506-31-Z3CT 3506-31-SS .310 7.87
3506-32-Z3CT 3506-32-SS .320 8.13
3506-33-Z3CT 3506-33-SS .330 8.38
3506-34-Z3CT 3506-34-SS .340 8.64
3506-35-Z3CT 3506-35-SS .350 8.89
3506-36-Z3CT 3506-36-SS .360 9.14
3506-37-Z3CT 3506-37-SS .370 9.40
3506-38-Z3CT 3506-38-SS .380 9.65
3506-39-Z3CT 3506-39-SS .390 9.91
3506-40-Z3CT 3506-40-SS .400 10.16
3506-41-Z3CT 3506-41-SS .410 10.41
3506-42-Z3CT 3506-42-SS .420 10.67
3506-43-Z3CT 3506-43-SS .430 10.96
3506-44-Z3CT 3506-44-SS .440 11.18
3506-45-Z3CT 3506-45-SS .450 11.43
3506-46-Z3CT 3506-46-SS .460 11.68
3506-47-Z3CT 3506-47-SS .470 11.94
3506-48-Z3CT 3506-48-SS .480 12.19
3506-49-Z3CT 3506-49-SS .490 12.45
3506-50-Z3CT 3506-50-SS .500 12.70
3506-51-Z3CT 3506-51-SS .510 12.95
3506-52-Z3CT 3506-52-SS .520 13.21
3506-53-Z3CT 3506-53-SS .530 13.46
3506-54-Z3CT 3506-54-SS .540 13.72
3506-55-Z3CT 3506-55-SS .550 13.97
3506-56-Z3CT 3506-56-SS .560 14.22
3506-57-Z3CT 3506-57-SS .570 14.48
3506-58-Z3CT 3506-58-SS .580 14.73
3506-59-Z3CT 3506-59-SS .590 14.99
3506-60-Z3CT 3506-60-SS .600 15.24
3506-61-Z3CT 3506-61-SS .610 15.49
3506-62-Z3CT 3506-62-SS .620 15.75
3506-63-Z3CT 3506-63-SS .630 16.00
3506-65-Z3CT 3506-65-SS .650 16.51
3506-67-Z3CT 3506-67-SS .670 17.02
3506-69-Z3CT 3506-69-SS .690 17.53
