Go Green and Save Green!

When selecting finishes, select the RoHS compliant finishes. They are better for the environment and less expensive!


ST-1200 Line Receptacle Support Preparation

S-Spring

Support Preparation for S-Spring Receptacle

Stud Retainer Recessed in Panel Underside

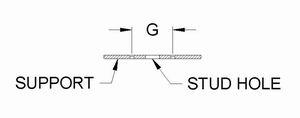

Spring Size Stud Hole Dia. Dim. G
±.002		 Rivet Hole Dia. Rivet Hole Countersink Rivet Shank Dia.
3 7/32" .625" .097" to .100" 3/16" dia. x 110° 3/32"
4 9/32" .750
5 11/32" 1.000" .129" to .133" 1/4" dia. x 110° 1/8"
65 15/32" 1.375"
  1. Make support holes for studs and rivets
  2. Secure receptacle to support
 Drill Holes Drawing

Stud Retainer Recessed in Support (support thin enough to be dimpled)

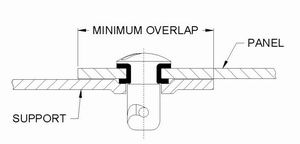

Stud Size Max. Support Thickness for Dimpling Stud Hole Dia. Minimum Overlap Minimum Overlap Drawing
3 .040" 3/16" .469"
4 .050" 1/4" .625"
5 .063" 5/16" .781"
65 .078" 13/32" 1.02"
1. Make support holes for studs and rivets. Drill Holes Drawing
2. Dimple the Support. Dimple Support Drawing with Tooling Identification

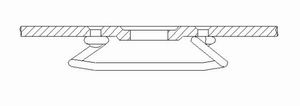

3. Secure Receptacle to Support. Secure Receptacle Drawing
S-Spring Receptacle Dimpling Tool
The 9916-2-1xxx-BB is used to dimple the support to allow the retainer to nest within the support so that the panel and support are in direct contact. The 9902-2-1xxx-BB is used to support the support during dimpling.

The triple-x (xxx) in the tool part number is for the stud size number: i.e., 3, 4, 5, or 65.

Dimpled Support Preparation for S-Spring Receptacle
(Flush Head Stud)

A. Dimpled Panel Stud Hole and Full Grommet B. Dimpled and reverse-clinched panel stud hole
Dimpled Panel and Support Drawing Dimpled Panel and Support Drawing

Note: The S-Spring is the only ST-1200 Line receptacle that can accept a dimpled support hole as shown here.

Spring Size Stud Hole Dia. Dim. G
±.002		 Rivet Hole Dia. Rivet Hole Countersink Rivet Shank Dia.
3 3/16" .625" .097" to .100" 3/16" dia. x 110° 3/32"
4 1/4" .750
5 5/16" 1.000 .129" to .133" 1/4" dia. x 110° 1/8"
65 13/32" 1.375"
1. Drill support holes for studs and rivets. 2. Dimple Support Hole
Drill Support Holes Drawing Dimple Support Hole with Tooling Identification
3. Secure Spring to support. Step 2 notes:
Secure Spring to Support Drawing

The triple-x (xxx) in the tool part number is for the stud size number, i.e., 3, 4, 5, or 65

If the stud panel is flat on the underside and counter-sunk for the stud head on top, the support hole does not need to be dimpled. In this case, prepare the support for non-flush head studs.

A panel stud hole which is dimpled for a GF grommet requires a different support dimple than a hole which is dimpled and reverse clinched with no grommet.

S-Spring Receptacle Dimpling Tool

If the stud is installed with a 1276 Grommet, the 9916-2-6xxx-BB is used to dimple the support.

If the stud is installed without a grommet (dimpled and reverse-clinched panel stud hole), use the 9916-2-6-Nxxx-BB to dimple the support.

In both cases, the 9902-2-6xxx-BB Side A is used for support during dimpling.

Use of Receptacles Other Than S-Spring Using Flush Head studs with any ST-1200 Line receptacle, other than the S-Spring, requires that the stud hole through the panel be flat on the underside and countersunk for the stud head on top.
