ST-1200 Line Installation

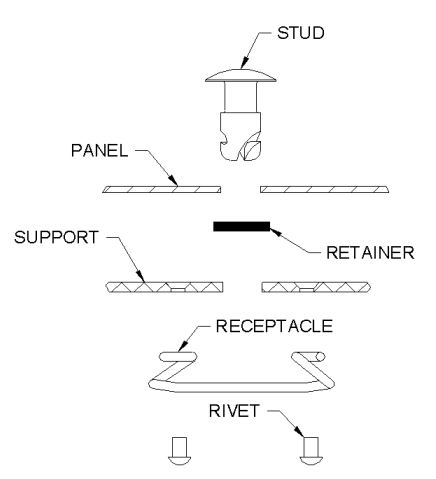

General Assembly DrawingInstallation of the ST-1200 Line components is divided into two parts.

The first part is for installation of the stud and retainer in the panel. (See the "Stud" link to the left.)

The second part is the installation of the receptacle. (See the "Receptacle" link to the left.)
