DP-6100 Line Pawl Latches
6175 Series Self Adjusting Spring

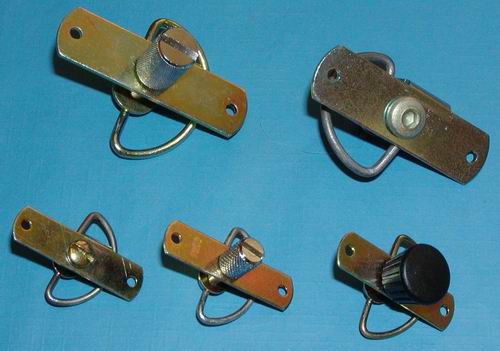

Pawl Latch Product Picture

The 6170 and the larger 6175 Series Pawl Latches use a helical spring pawl which varies its grip length with rotation and is capable of latching a wide range of support thickness. The sloped pawl design also allows the operator to adjust the applied clamping force.

Four head styles are offered in each size, and an all-stainless knurled head latch is available in the larger size.

Grip Range: .078" to .438" (1.98 to 11.13 mm)
Max Load Without Distortion: 23 lb

Knurled Head
Knurled Head Dimension Drawing
Part NumberFinish
6175-K-Z3CTZinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT



Plastic Knob Head
Knob Head Dimension Drawing
Part NumberHead MaterialFinish
6175-PBlack ThermoplasticZinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
The knob is supplied unattached and is pressed
onto the head after installing the latch



Pan Head
(Slotted or Hex)
Pan Head Dimension Drawing
Part Number

Head

Finish
6175-A-Z3CTSlotZinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT
6175-A-Z3BTSlotZinc Trivalent Black .0003 thick. Trivalent Chromate Black Dye with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type II, SC 2, Black
Suffix: -Z3BT
6175-H-Z3CTHexZinc Trivalent Clear .0003 thick. Trivalent Chromate Clear with Sealer (RoHS Compliant)
Specification(s): ASTM-B-633, Type III, SC 2, Clear
Suffix: -Z3CT

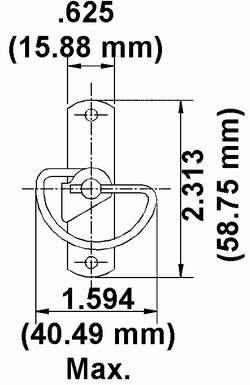

Under-Panel Dimensions

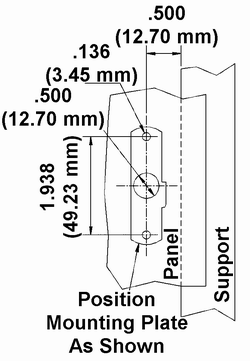

Panel Preparation

Latch Dimension Drawing

Installation Drawing
