DA-4600 Line
Mini Clip-In Receptacle

Mini-Clip-In Receptacle Picture
Click here for the Engineering Drawing		 Mini Clip-In Receptacle Dimension Drawing

To Determine Receptacle Size and Stud Length Required

Step 1: Find the Support Thickness Range that applies to your Support Thickness in the table. The Part Number of the receptacle needed is stated to the right of your applicable Support Thickness Range.

Support Thickness
The thickness of the material where the receptacle will be mounted.  See Figure below.
Receptacle Selection
Support Thickness Ranges Receptacle Part Numbers Z
(inch) (mm) (inch) (mm)
0.035-0.049 0.89-1.24 4604-R11-BK 0.052 1.32
0.050-0.069 1.27-1.75 4604-R12-BK 0.072 1.83
0.070-0.089 1.78-2.26 4604-R13-BK 0.092 2.34
0.090-0.109 2.29-2.77 4604-R14-BK 0.112 2.84
0.110-0.129 2.79-3.28 4604-R15-BK 0.132 3.35
Step 2: Calculate the Panel Gap Thickness. Then, in the table below, find the column that applies to the receptacle you selected above and find the Panel Gap Thickness range that applies to your calculated Panel Gap Thickness.  The stud length needed is to the far right of your applicable Panel Gap Thickness range.
Panel Thickness
The thickness of the material that contains the stud.
Gap Thickness
The combined thickness of the receptacle top flange (0.055") and stud retainer thickness.  These parts may be nested into recessed holes.
 Panel Gap Thickness =
Panel Thickness +
Gap Thickness

Mini Clip-In Receptacle Panel-Gap Thickness Drawing

Inch

Receptacles and Panel Gap Thickness Ranges Stud Grip Length
Dim. "G"
4604-R11-BK 4604-R12-BK 4604-R13-BK 4604-R14-BK 4604-R15-BK
.105-.154 .085-.134 .065-.114 .045-.094 .025-.074 45
.155-.204 .135-.184 .115-.164 .095-.144 .075-.125 50
.205-.254 .185-.234 .165-.214 .145-.194 .125-.17 55
.255-.304 .235-.284 .215-.264 .195-.244 .175-.224 60
.305-.354 .285-.334 .265-.314 .245-.295 .225-.274 65
.355-.404 .335-.384 .315-.364 .295-.344 .275-.324 70
.405-.454 .385-.434 .365-.414 .345-.394 .325-.374 75
.455-.504 .435-.484 .415-.464 .395-.444 .437-.424 80
.505-.554 .485-.534 .465-.514 .445-.494 .425-.474 85
.555-.604 .535-.584 .515-.564 .495-.544 .475-.524 90
.605-.654 .585-.634 .565-.614 .545-.594 .525-.574 95
.655-.704 .635-.684 .615-.664 .595-.644 .575-.624 100

mm

Receptacles and Panel Gap Thickness Ranges (mm) Stud Grip Length
Dim. "G"
4604-R11-BK 4604-R12-BK 4604-R13-BK 4604-R14-BK 4604-R15-BK
2.67-3.91 2.16-3.40 1.65-2.90 1.14-2.39 0.64-1.88 45
3.64-5.18 6.43-4.67 2.92-4.17 2.41-3.66 1.91-3.15 50
5.21-6.45 4.70-5.94 4.19-5.44 3.68-4.93 3.18-4.42 55
6.48-7.72 5.97-7.21 5.46-6.71 4.95-6.20 4.45-5.69 60
7.75-8.99 7.24-8.48 6.73-7.98 6.22-7.47 5.72-6.96 65
9.02-10.26 8.51-9.75 8.00-9.25 7.49-8.74 6.99-8.23 70
10.29-11.53 9.78-11.02 9.27-10.52 8.76-10.01 8.26-9.50 75
11.56-12.80 11.05-12.29 10.54-11.79 10.01-11.29 9.53-10.77 80
12.83-14.07 12.32-13.56 11.81-13.06 11.30-1.55 10.80-12.04 85
14.10-15.34 13.59-14.83 13.08-14.33 12.57-13.82 12.07-13.31 90
15.37-16.61 14.86-16.10 14.35-15.60 13.84-15.09 13.34-14.58 95
16.64-17.88 16.13-17.37 15.62-16.87 15.11-16.36 14.61-15.85 100

Installation

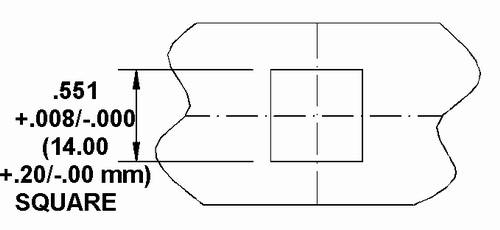

Support Panel Preparation
Mini Clip-In Receptacle Support Preparation Drawing

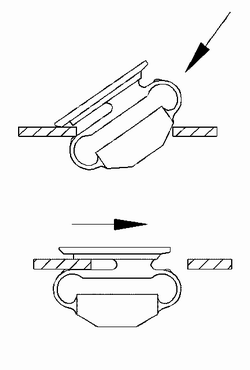

Installation Procedures
Mini Clip-In Receptacle Installation Drawing
  1. Place the open end of the top flange around the hole edge from above and angel the receptacle through the hole.
  2. Slide the receptacle back until the flange lip snaps into the hole.
